Loader Parts in New York - Loaders are heavy equipment that is used in many industries. These machines are responsible for loading and transporting items such as gravel, raw materials, snow, asphalt, rock, sand, grain, woodchips, demolition debris and more. Loaders transport material into rail cars, dump trucks, feed-hoppers and conveyor belts. There are a variety of different loaders designed for numerous applications including scoop, skid-steer, front loader, shovel, payloader, front-end loader, skip loader, wheel-loader, and bucket loader.
Description
This machine is part of the tractor family features a wide bucket attached to the front of the machine that is connected to the endo of two booms or arms. Some models have wheels and others rely on tracks. This machine can scoop up material such as gravel or dirt or sand and transport it to another location without pushing it across the ground. Loaders transport stockpiled materials from the ground and deposit them into an open trench or dump truck. Removable or permanently mounted attachments make up the loader assembly. The bucket can be interchanged with other tools. Fork attachments can be mounted to lift shipping containers or pallets. A hydraulically operated clamshell bucket can be attached for light dozer and scraper applications. Various devices including a bale grappler can take care of large bales of straw or hay.
The term front loader is given to sizeable loaders that feature a front bucket. Smaller loader tractors can be outfitted with a tiny backhoe and are called JCBs, loader backhoes or backhoe loaders. These machines are used for digging, laying pipe, clearing debris and loading trucks. The loader is not as efficient as other models such as an excavator or a backhoe due to its’ inefficiency of being unable to dig past its’ wheel level. The loader bucket capacity is in the range of half a cubic meter to 36 cubic meters. Between a backhoe loader and front loader, the front loader model has more bucket capacity available.
Most loaders consist of wheels as opposed to tracks, although, track models are available. Construction sites commonly employ track models since rubber tires can be easily damaged from sharp nails and similarly sharp things. Tracks feature more traction compared to wheels but wheels showcase better mobility and speed while offering less damage to paved areas. In construction zones, loaders are responsible for moving materials and tools for digging around the site.
Front loaders are often used for snow removal from parking lots, sidewalks and other locations that are too narrow for heavy equipment. Front loaders are commonly used as snowplows once the right attachment is secured or they can use a bucket or snow-basket to transport snow into a dump truck or snow plow bin.
There are special high-tip buckets available for lightweight materials including peat, woodchips and light gravel, making it easier to empty the bucket while lifted at full height. These machines have enjoyed greater popularity over the past twenty years in urban engineering applications and earthmoving works. There are many loader sizes available to facilitate many duties.
Large loaders do not rely on automotive steering mechanisms unlike standard tractors with a front bucket or backhoes. This type of loader accomplishes steering with a hydraulically actuated pivot point that is found between the front and rear axles, more commonly known as articulated steering. This specialized design allows most of the weight to be carried by the machine due to the solid front axle. Articulated steering offers more maneuverability. The front wheels rotate along the same axis together with the attachment to allow the operator to steer the load in an arc after the machine is in position. Once the machine is twisted to the side with a heavy load raised, there is a greater risk of turning over towards the wide side.

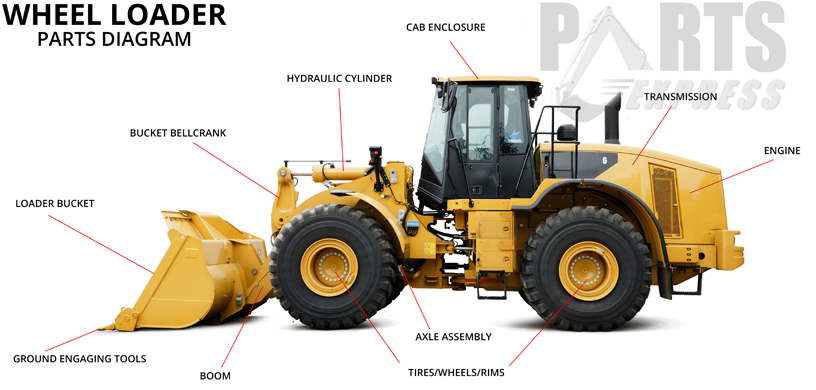

Major component items include the engine that is typically diesel, hydraulic items such as pumps, motors and valves along with transmission components including wheels, tracks, axles, motors, gearbox, pumps etc.
The engine is responsible for controlling the hydraulics and the transmission which enables the front attachments such as the bucket, forks, sweeper etc. to move. Each loader model has particular lifting capabilities and can conquer manure, sand, gravel or other items.
Wheel Loaders
The first wheel loader consisted of a tractor with a rear-wheel drive. Current wheel loaders feature front and rear wheels of the same dimensions and are articulated.
Armored Wheel Loaders
Many military jobs use an armored Caterpillar 966 wheel loader to handle construction jobs and combat engineering tactics. They are seen removing roadblocks and building fortifications and bases. Armor plating is added to protect the machine against gunfire, Molotov cocktails, stones and rocks. There are specific police squads who have relied on wheel loaders for military applications to open up routes for police transport. Remote controlled wheel loaders are used by some police and military departments.
Tractor Front Loaders
A loader addition may accompany tractors that have fifty to two-hundred HP. These tractor loaders were created to achieve a variety of farming tasks. These machines are extremely versatile and much more affordable compared to telehandlers. Hydraulic grabs and spikes are some of the common attachments to increase efficiency with bale handling and silage. Bucket attachments are often used for agricultural jobs and pallet transportation can be facilitated with fork attachments.
Compact Front End Loaders
Front-end loaders or FELs are commonly added to compact utility tractors or CUTs and farm tractors. Landscaping and groundskeeping applications utilize smaller and more compact models with 18 to 50 HP. There are curved arm models, semi-curved and the traditional dogleg model design.
CUT size tractors featuring front-end loaders can complete numerous jobs, especially when outfitted with special attachments. For increased digging abilities, a tooth bar may be outfitted to the front edge of the machine. A QA or quick attach system or quick coupler enables buckets and attachments including pallet forks and bale spears to be easily removed and attached.
The load-haul-dump or LHD machine consists of a front end loader that is beneficial in mining applications. It uses a variety of buckets and can operate either with electric motors or diesel engines.
Skid Loaders
A skidsteer, skid loader or skid-steer loader is a small engine powered loader that consists of a rigid frame. It has lift arms that can easily attach to a variety of tools. These machines are generally a four-wheeled vehicle that mechanically synchronizes on each side. Each set of right and left wheels are capable of being driven independently. Usually, the wheels keep a straight, fixed body alignment without separate steering options.
Differential steering is responsible for conducting turning maneuvers. The right and left wheel pairs operate at different speeds, causing the machine to turn by dragging or skidding fixed-orientation wheels along the ground. Torsional forces due to the dragging motion are prevented thanks to the strong wheels and rigid frame. Tracked vehicles and skid steers are capable of destroying soft road surfaces and fragile environments due to high ground friction.
There are specifically designed wheels that convert low ground friction. There are specific skid-steer units that can conduct zero-radius turns and pirouette turning to facilitate maximum maneuverability. These functions are desirable for jobs requiring a loader that is compact and agile. There are some varieties called multi-terrain loaders that utilize tracks as opposed to wheels.
In skid loaders, the lift arms are found beside the operator and have pivot points situated behind the driver’s shoulders. The operators’ close proximity to the boom movement in earlier models made them not as safe as original front loader models, specifically while entering and exiting the unit. Today’s modern models have completely enclosed cabs and additional features to keep the operator safe. Similar to other front loaders, it can transport material from one location to the next via carrying material in the bucket to deposit into a trailer or truck or pushing it across the ground.
History of Tracked Loaders
A tracked loader utilizes a chassis with a loader for digging items and loading materials. There have been three main design evolutions for this machine, each one improving versatility and efficiency. This equipment is capable of numerous tasks, making it a popular addition to fleets.
Tracked loaders were born from track tractors initially, although, they were more like bulldozers of that era due to their ability to dig and access harder ground services. Tracked loaders were used mainly for moving stockpiled materials into rail cars and loading trucks.
Hydraulic integration changed everything from increasing overall power to providing power to the loader linkages. Hydraulics most importantly enabled the machine to apply down-pressure to the bucket, allowing them much better digging within compact environments. The initial designs placed the engine weight at the front area of the tracks other heavy loader items. This design ended up causing extreme wear and tear problems throughout the undercarriage and the front idler wheels. The next big design success was the implementation of the hydrostatic drive system, greatly improving track loader efficiency.
Swingloaders
A swingloader is a popular piece of equipment that uses a rigid frame and a swinging boom. The boom can travel 180 degrees or farther. This equipment is used mostly in railway applications for laying rail. There are a variety of attachments including buckets, forks and magnets that can be added on for more diverse applications. Smaller machines are used for agricultural applications. Swingloaders are useful in limited space applications. Capable of lifting and depositing on all sides, this loader is popular for many different jobs.
